About this item
| Brand | MICROWARE |
| Maximum Supply Voltage | 5 Volts (DC) |
| Mounting Type | Coaxial,Plug Mount |
| Interface Type | Coaxial |
| Number of Channels | 2 |

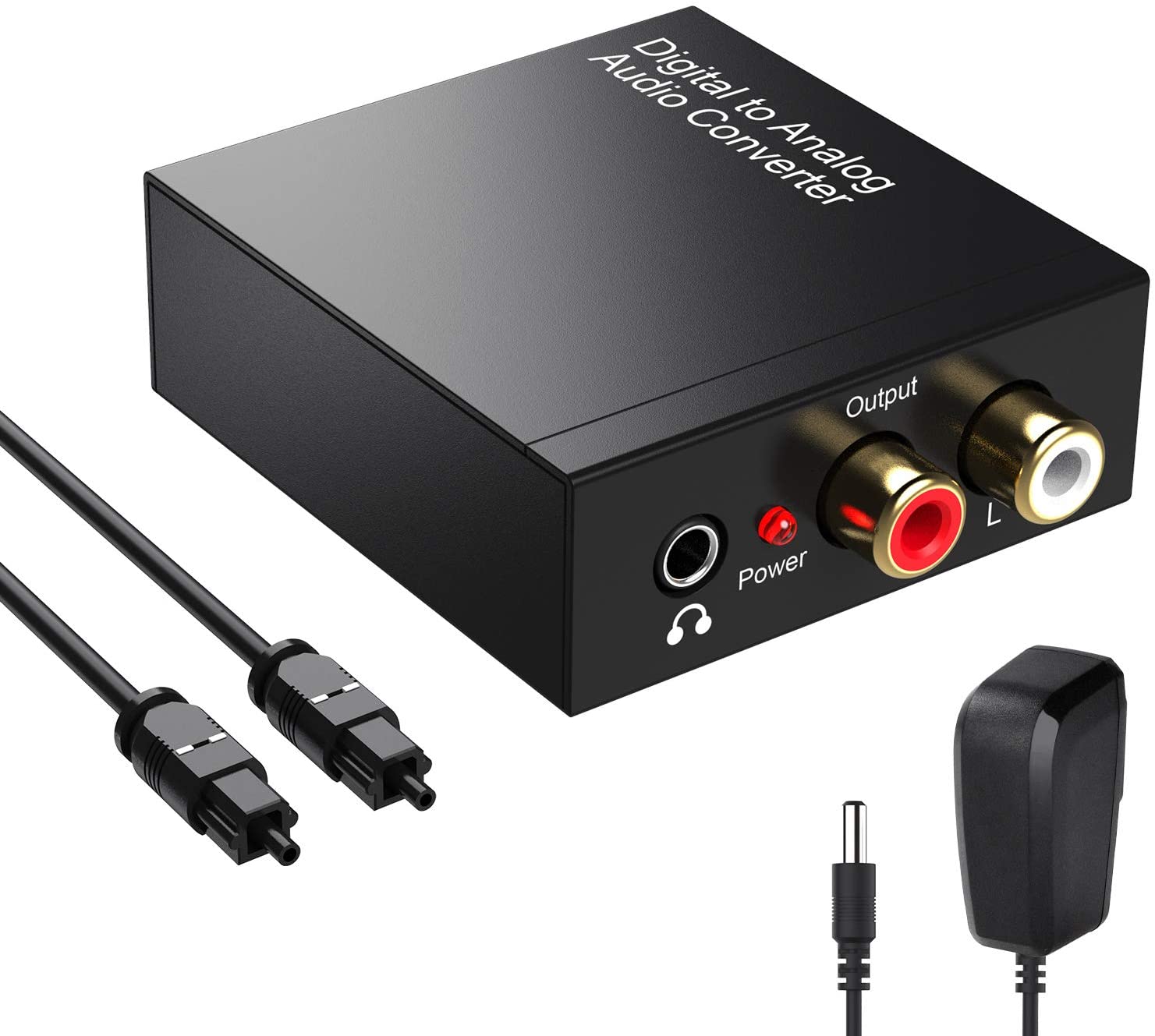

- 【Digital to Analog Audio Converter】 Converts coaxial or toslink digital PCM audio signals to analog L/R RCA and 3.5mm Jack audio simultaneously ( not capable of being reversed).Can be Used for PS3, PS4, Xbox, Blu-ray Player, HD DVD, Home Cinema Systems, AV Amps, Etc
- 【192KHz Sampling Rate Achieved】Supports Sampling Rate at 32KHz, 44.1KHz, 48KHz, 96KHz and 192KHz; 24-bit S/ PDIF Incoming Bit Stream on Left and Right Channels.
- 【Electromagnetic-noise-free】Supports Uncompressed 2-channel LPCM or PCM Digital Audio Signal Output; Provides Electromagnetic-noise-free Transmission(5.1 channel is incompatible, please set the audio output to PCM or LPCM）

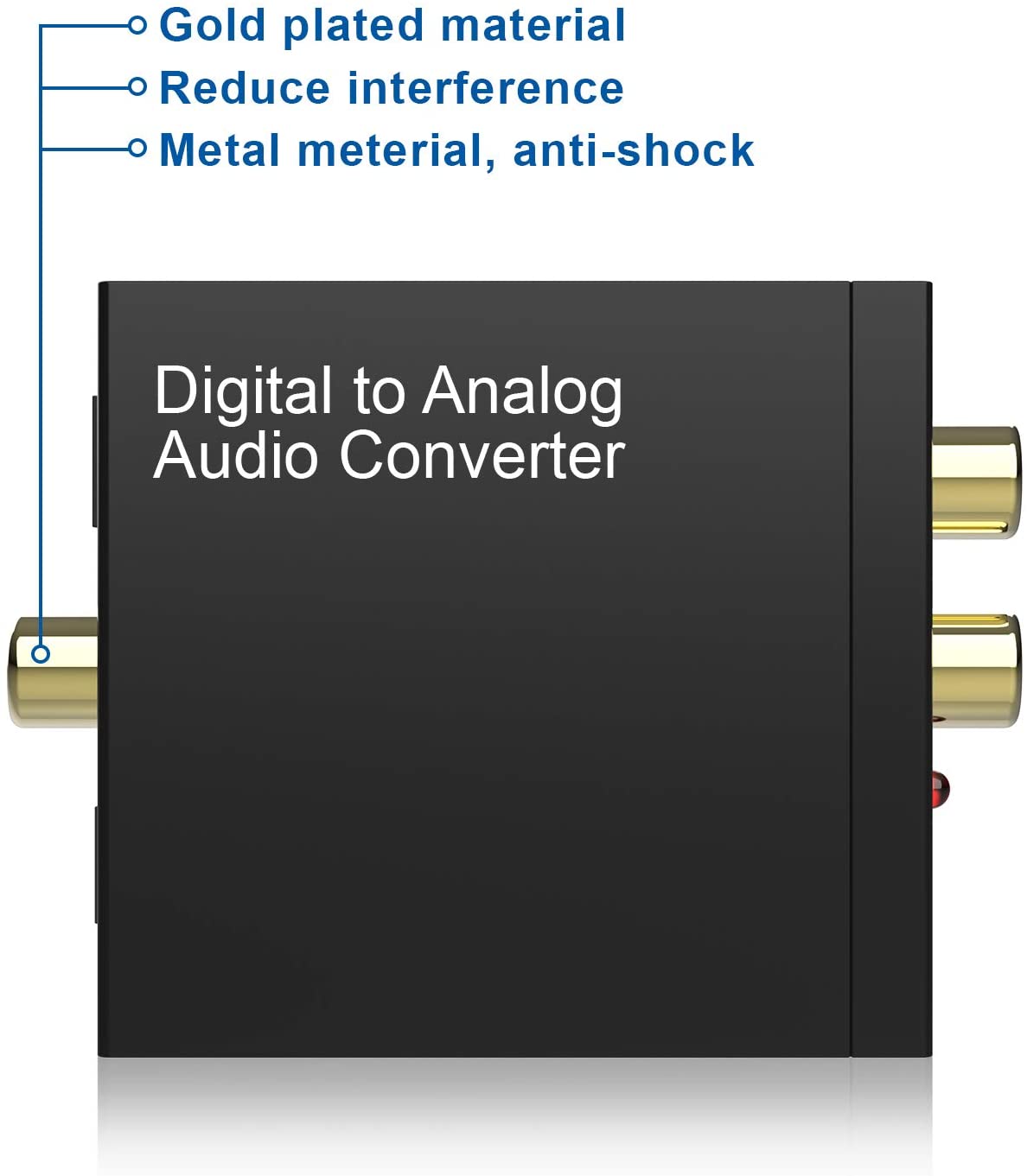

- 【Metal Material,Anti Shock】Gold Plated Material Can Reduce Interference and Make the Connection Stronger.Stable Connection Brings a Good User Experience.

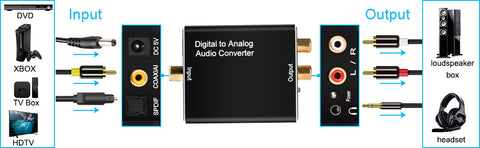

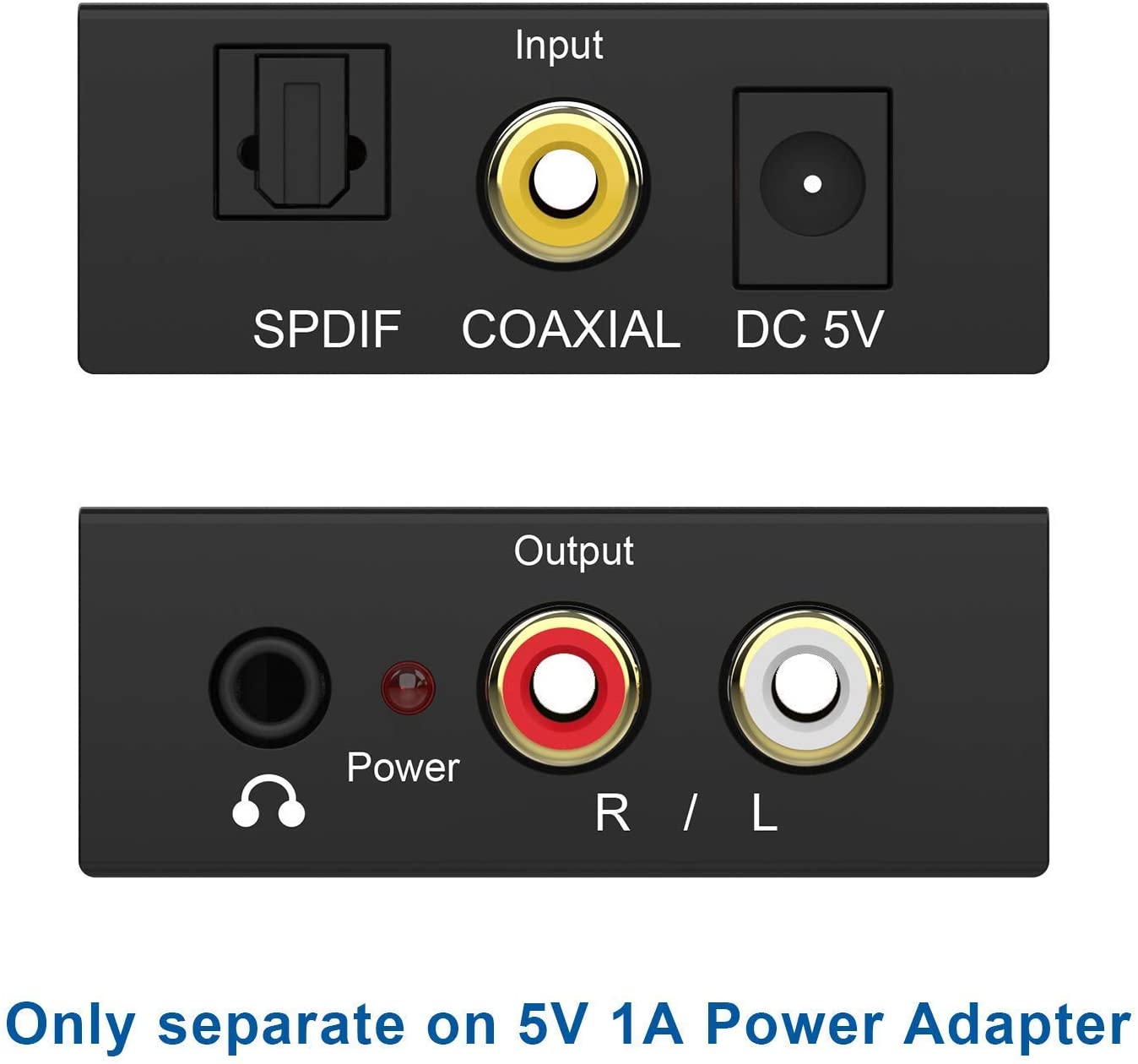

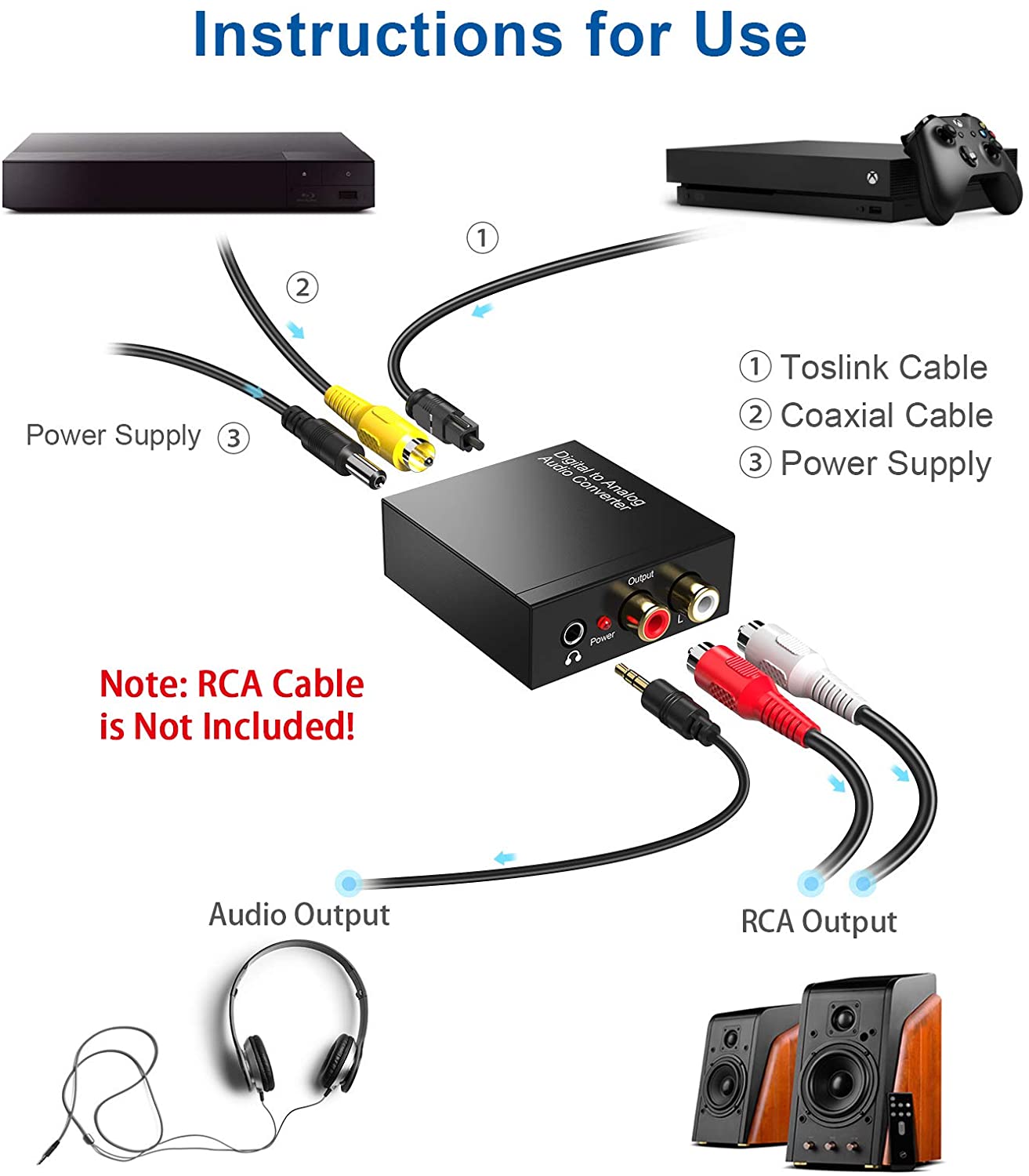

- 【Input Audio Connector】1 x Toslink, 1 x RCA (Coaxial); Output Audio Connector: 2 x RCA(R/L), 1 x 3.5mm Jack; 1x5.5mm 5V/1A Power Supply ; Do Not Use Other Plugs, It Can Only Use 5V 1A Plug
Gentle Reminder

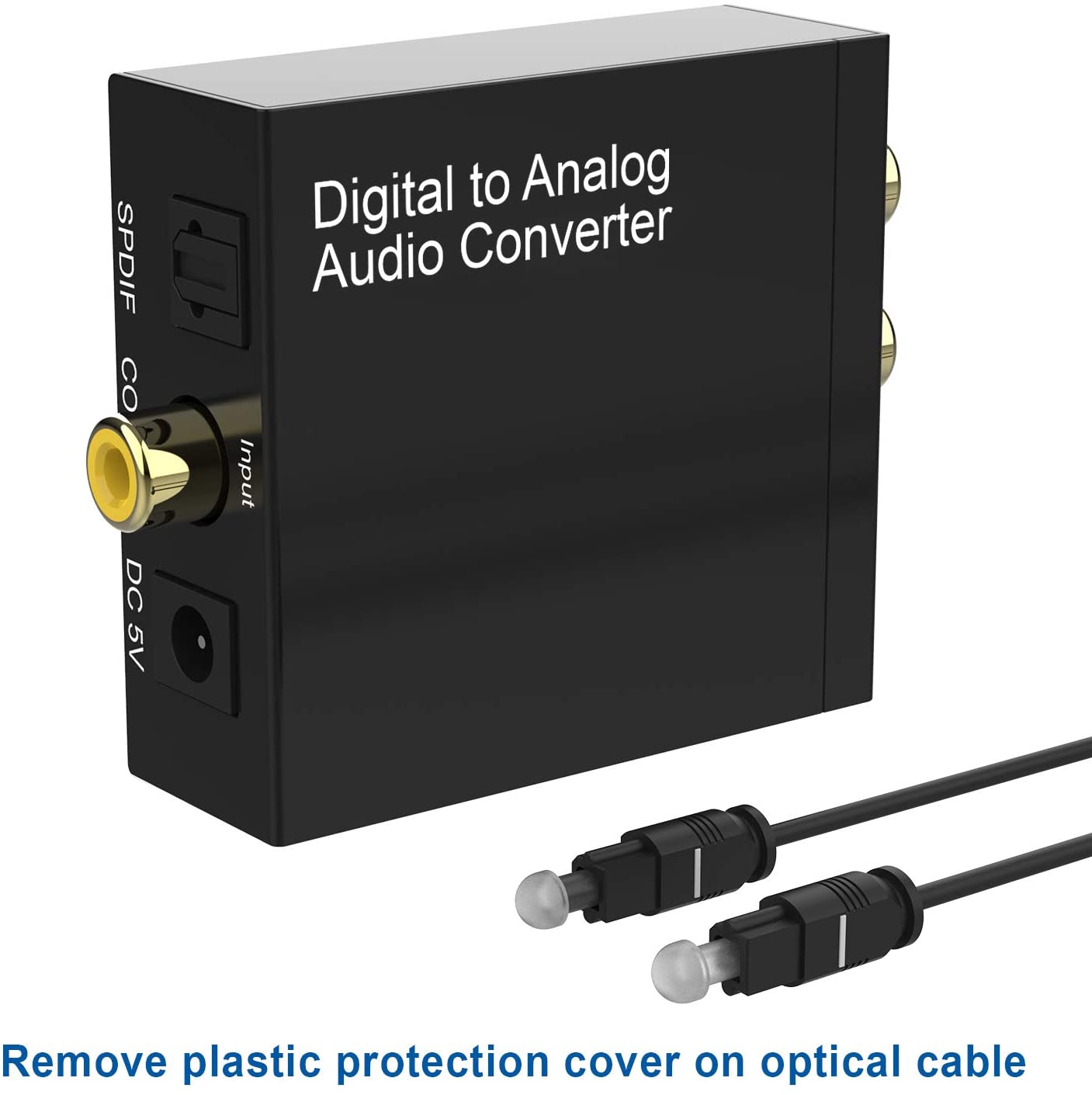

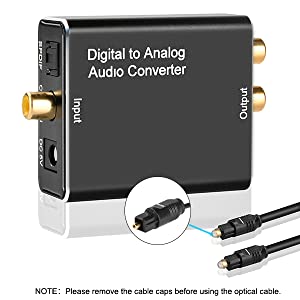

Please remove the cable caps before using the optical cable.
Wide Application
Easy to Install and Simple to Operate;
Can be Used for PS3, PS4, Xbox, Blu-ray Player, HD DVD, Home Cinema Systems, AV Amps, etc.

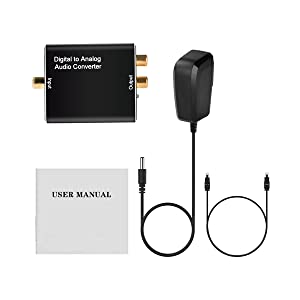

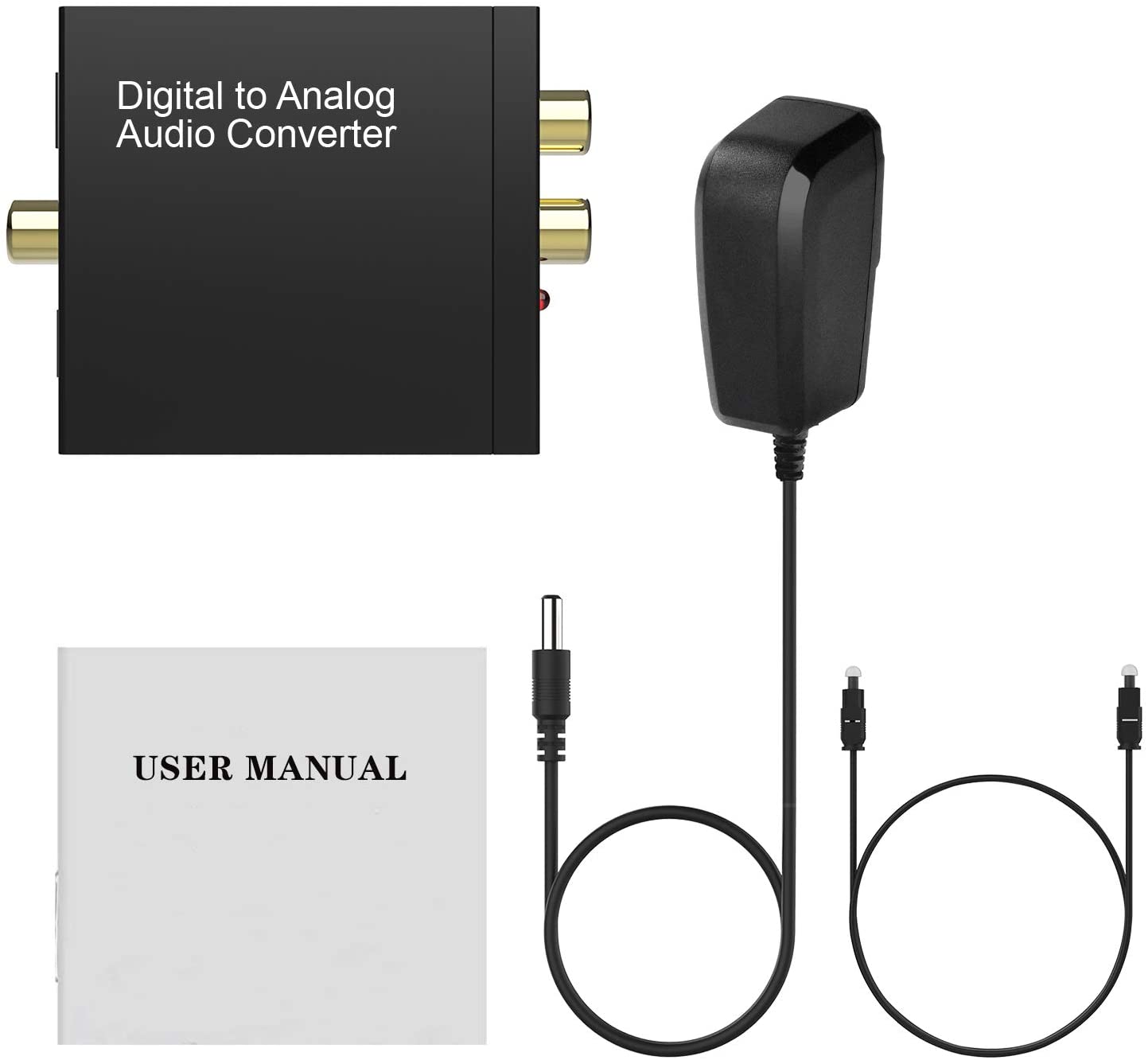

Package List
1 x Digital to Analog Audio Converter
1 x Toslink Cable (Optical cable)
1 x 5V/2A Power Supply
1 x User Manual
Product Description
Specifications:
- Color: Black
- Net Weight: approx 78g

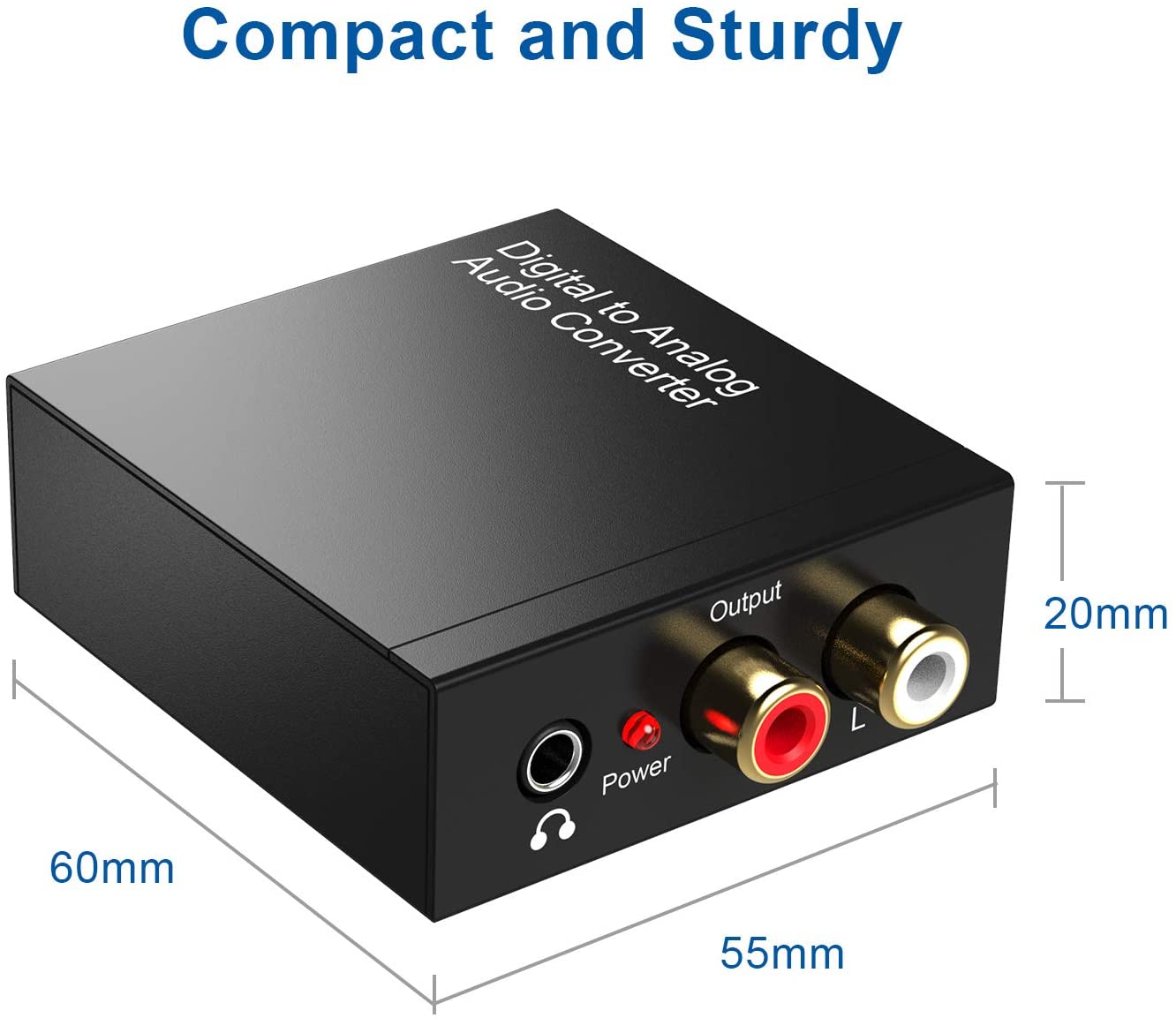

- Dimension: 60 x 55 x 20 mm
- Consumption: 0.5W (Max)
- Converter Unit: FCC, CE, UL
- Power Supply: UL, CE, FCC
- Powered by 5.5mm 5V/1A Power Supply
Note:
- Do Not Use Other Plugs, It Can Only Use 5V 1A Plug
- The adapter is incompatible with 5.1 Channel Signal such as Dolby AC3, please set the audio output to PCM or LPCM.
- This Converter can't adjust volume, please adjust the volume by your input device or output device.
- If you have some problems connecting your TV and speakers with this product, please set the TV audio output to PCM/LPCM format and then try again.
192kHz 24bit Audio Sample Rate
- Support uncompressed 2-channel LPCM digital audio signal output
- 24 bit S/PDIF incoming bit stream on R/L channels
- Supports sampling rate at 32, 44.1, 48, 96 and 192 KHz
|
|
|
|
|---|---|---|
Digital to Analog Audio Converter
|
Small and easy to carry
|
